Protek Diaphragm Pump Primers

Protek Diaphragm Pump Primers
  • Protek Primers DP
  • Primer
SKU
Primers
Our price:
  • Details
  • Related products
  • Customer feedback

         PLEASE CALL TO ORDER  -  VIEW PRIMERS & MORE IN OUR ONLINE CATALOG HERE

Diaphram Primers made by Protek Specialty Company.

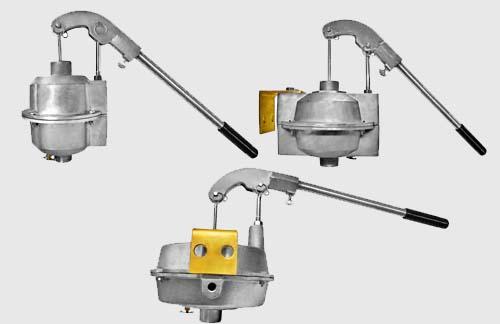

THE DIAPHRAGM PRIMER contains a rubber diaphragm working in an aluminum chamber. A levered handle attached to it by a connecting rod actuates the diaphragm. Air is drawn into the chamber through a suction valve on the up-stroke and discharged through a discharge valve on the down-stroke. The primer body is made of a light weight aluminum alloy. The diaphragm is of molded rubber, and it is extremely tough and longwearing. A rubber air discharge valve, built into the diaphragm, provides a positive seal. We manufacture #5 Diaphragm Primers(DP5), #7 Diaphragm Primers(DP7), and #9 Diaphragm Primer(DP9).

HAND DIAPHRAGM PRIMER FEATURES

  • The body is made of a lightweight aluminum alloy.
  • It can be easily mounted on most centrifugal pumps.
  • It contains a tough and durable rubber diaphragm.
  • All DP units come equipped with a drain valve.

PRIMER CAPACITY CHART

PRIMER

# of Strokes to Prime Through 25' of 4" Suction

# of Strokes to Prime Through 25' of 6" Suction

# of Strokes to Prime Through 25' of 8" Suction

5" HG 10" HG 15" HG 5" HG 10" HG 15" HG 5" HG 10" HG 15" HG
DP5

10

27

55


DP7

6

15

32

12

33

65


DP9

4

9

20

10

23

45

17

37

77

INSTALLATION & OPERATION

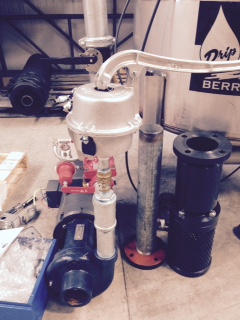

  1. Attach the mounting bracket to the centrifugal pump or skid.
  2. Connect the primer suction inlet to the priming port on the centrifugal pump with a non-collapsible hose or flexible tubing. Be sure all connections are airtight.
  3. If the primer is connected to a pump discharge, a cutoff valve should be installed in the priming line. This valve should be closed immediately after priming to prevent the pump from discharging through the primer.
  4. If the primer is connected to the pump suction, a cutoff valve is recommended.
  5. A cutoff valve may be used on the pump discharge to prevent air from being drawn into the pump from the discharge line while priming.
  6. All primers are equipped with a drain cock installed in the suction chamber for draining excess water after each use. The drain cock must always be closed when the primer is in use.
