Mazzei Injector Only

Mazzei Injector Only
  • Mazzei Comparison Chart
  • Complete Assembly in PVC Manifold
  • Diagram of Mazzei Injector
SKU
MAZ 283 PP
Our price:
$57.00
  • Details
  • Related products
  • Customer feedback

Mazzei Chemigation and Fertigation Technology equals greater efficiency at a lower cost...

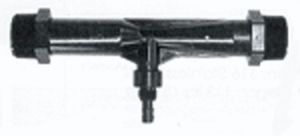

Mazzei Injectors are high-efficiency, venturi-type, differential pressure injectors with internal mixing vanes. When a sufficient pressure difference exists between the inlet and outlet ports of the injector, a vacuum is created inside the injector body, which initiates suction of a liquid or gas through the suction port.

The Mazzei Injectors require a drop in pressure and flow of 20%, which is not usually a problem.

Mazzeis are perfect for agricultural use. They work by creating a vacuum that sucks the solution into the line.   Watch the Demonstration Video here!

Most importantly, do not oversize the injector! Call 1-800-345-3747 for assistance.

Ex. of Choosing Injector: 2 Acre Field with 3 inch Mainline to field. You hope to fertilize 1/4 acre to 1 acre at a time. Your flow is 9 gpm to 36 gpm. Using above chart, you need a 584. The 1078 would not work on your lower end flow rates.

Ex. of How you will USE your Injector: Pour dissolved water soluble fertilizer into container/bucket. Next, open 2 Parallel PVC Valves. Lastly, slowly start to close the brass gate valve. You will see Fertilizer flow up into clear tube.



GENERAL FERTILIZER APPLICATION RATES:

Apply 3.5 lbs of 20-20-20 per 1,000 feet per week.   Once you have fruit set, apply 5 lbs. per 1,000' of 16-3-26 with Calcium.   ** If you are growing Tomatoes & Peppers, you should spray them every week with Calcium Chelate at a rate of 2 oz per 1,000 feet.

REMEMBER!!   More is not always better!  I have killed more with fertilizer, than I have helped!

*** Soil Tests are recommended.  Ask your Local Extension Agent about leaf samples and soil samples.  They can also make specific recommendations to your region.
